Feature:

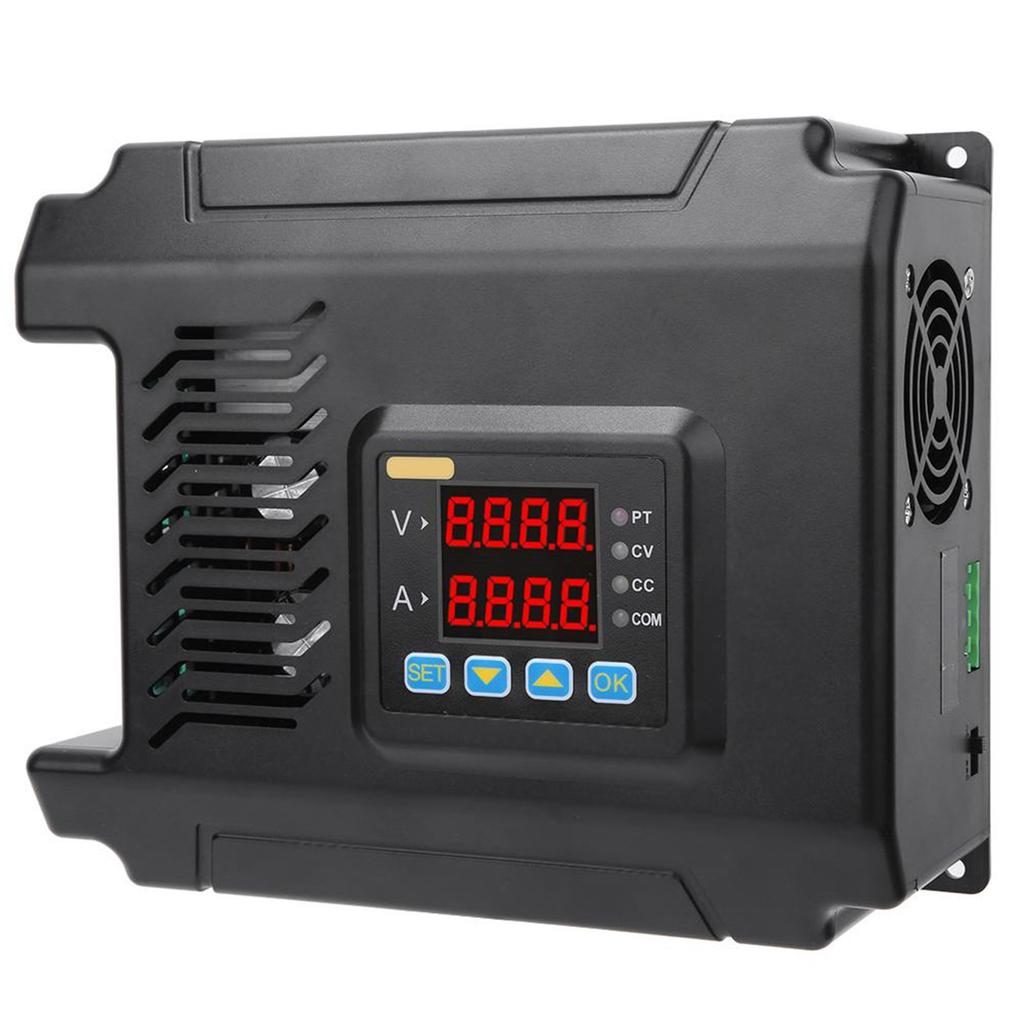

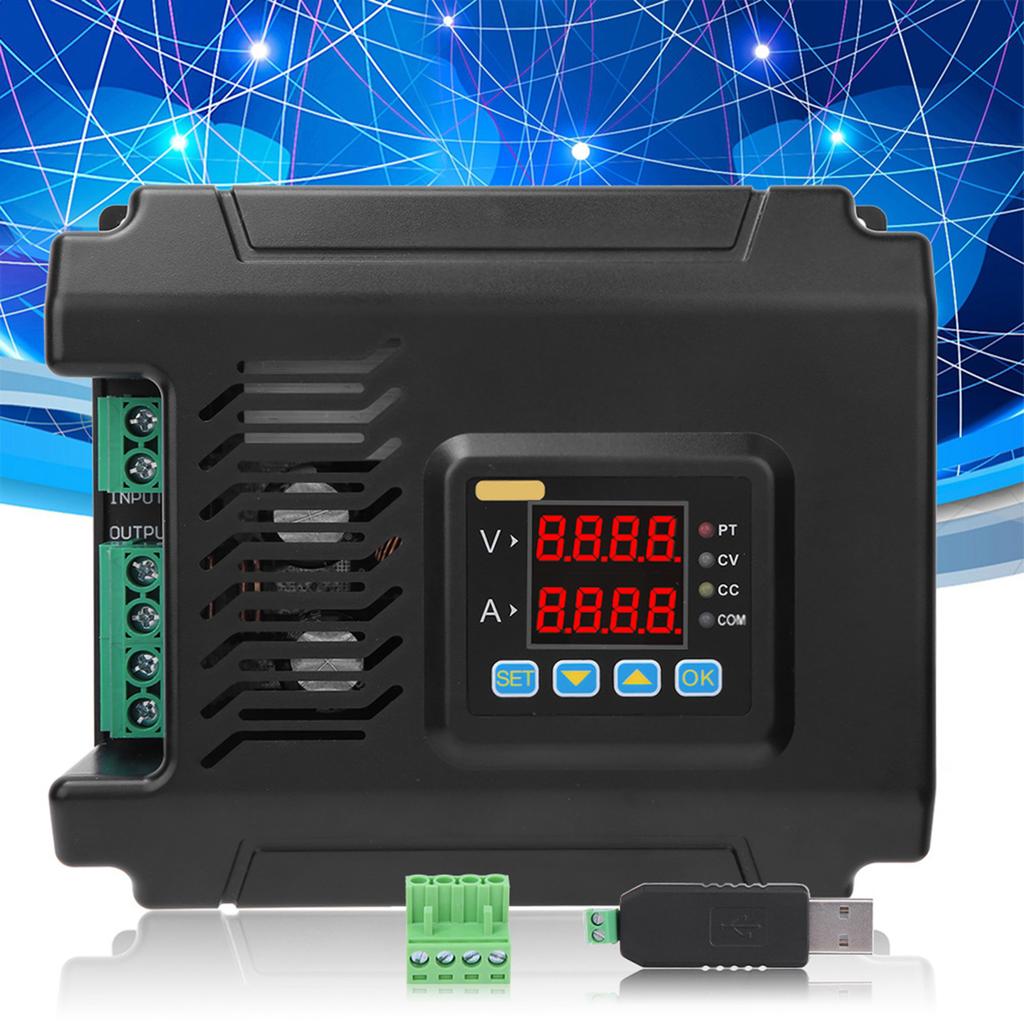

1. DPM8650‑485RF is a single output programmable high power switching power supply. The switching power supply has large output power, small size, well‑designed casing and long service life.
2. Equipped with RS485 communication interface, support switching between simple communication protocol and for MODBUS communication protocol, support secondary development, and provide multi‑purpose solutions according to test requirements.
3. Equipped with wireless controller, adopting 2.4 inch LCD screen, rich display content and simple , a wireless controller can control multiple switching power supplies simultaneously.
4. The wireless controller has built-in 3.7V 2000mA lithium battery, which can be recharged repeatedly and it can be used for more than 10 hours when completed charged.
5. The wireless controller uses 2.4G frequency radio frequency module and wireless , which can be quickly set and adjusted, and the is simple and fast.
Specification:
Condition: 100% Brand New
Item Type: Regulated Power Supply
Material: ABS
Model
DPM8650-485RF
Input Voltage
10-75V
Output Voltage
0-60V
Output Current
0-50A
Output Power
0-300W
Communication Interface
485 Communication Interface
Communication Protocol
Simple Communication Protocol and for MODBUS Protocol Switching
Included Accessories
USB to 485 Conversion Module
Voltage Resolution
10mV
Current Resolution
10mA
Output
<50mVpp
Typical Efficiency
92%
Display Accuracy
10mV, 10mA
Output Error
Voltage: ±2‰ + 1 Digit, Current: ±5‰ + 2 Digit
Response Time
<50ms
Item
Wireless Control Terminal
Wireless Mode
RF
Wireless Distance
10m / 32.8ft (Accessible)
Communication Address
00-99
Communication Channel
00-30
Wireless Channel
2.4G
Display Mode
2.4 Inch LCD Display
Rechargeable Battery
3.7V/2000mA
Controller Size
Approx. 120 x 80 x 25 mm / 4.7 x 3.1 x 1 in
Module Power Application:
1. Electricity, mainly including integrator and meter, intelligent electric meter, and LED driver.
2. Industrial control, industrial control field.
3. Health care, health care equipment, mainly including baby heartbeat monitor, monitor and so on.
4. Military industry, military industry is a very widely used aspect, such as military equipment.
5. Solar voltage regulation, battery charging and discharging, etc.

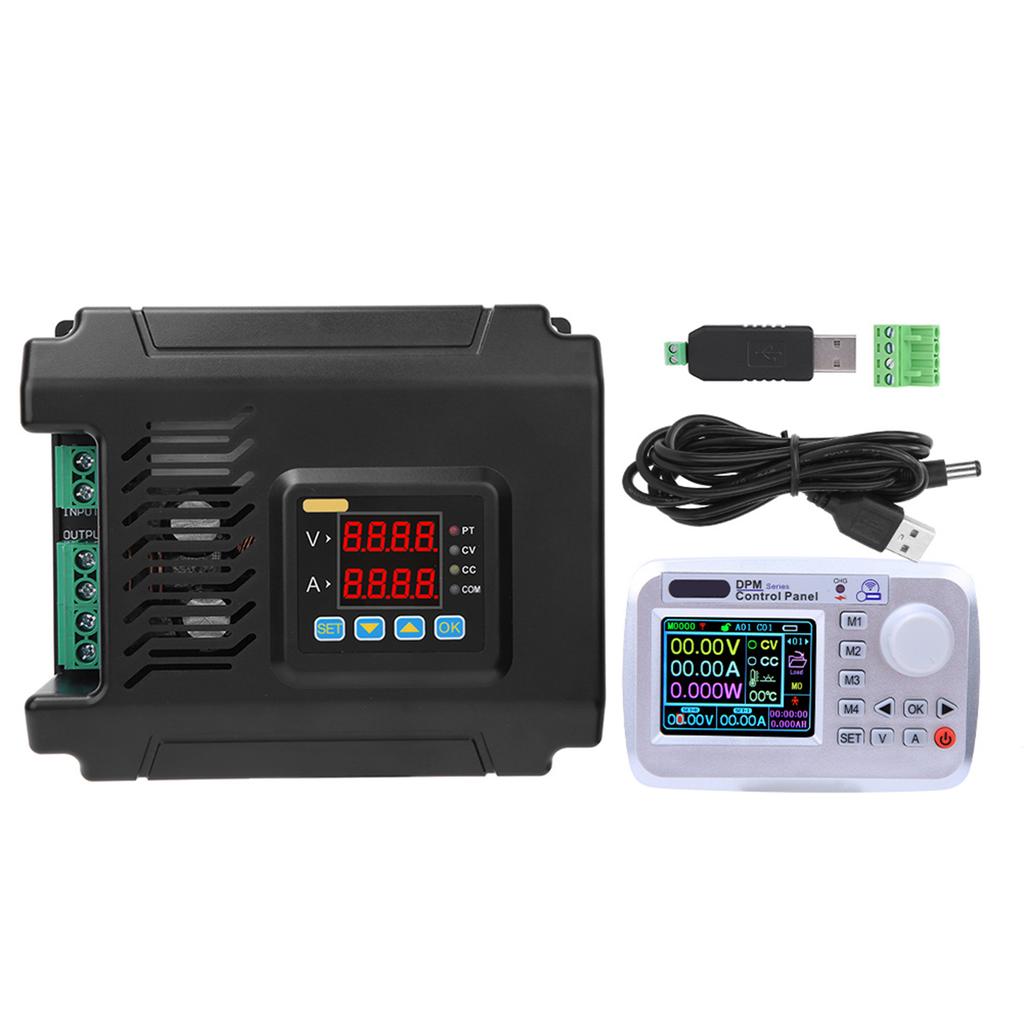

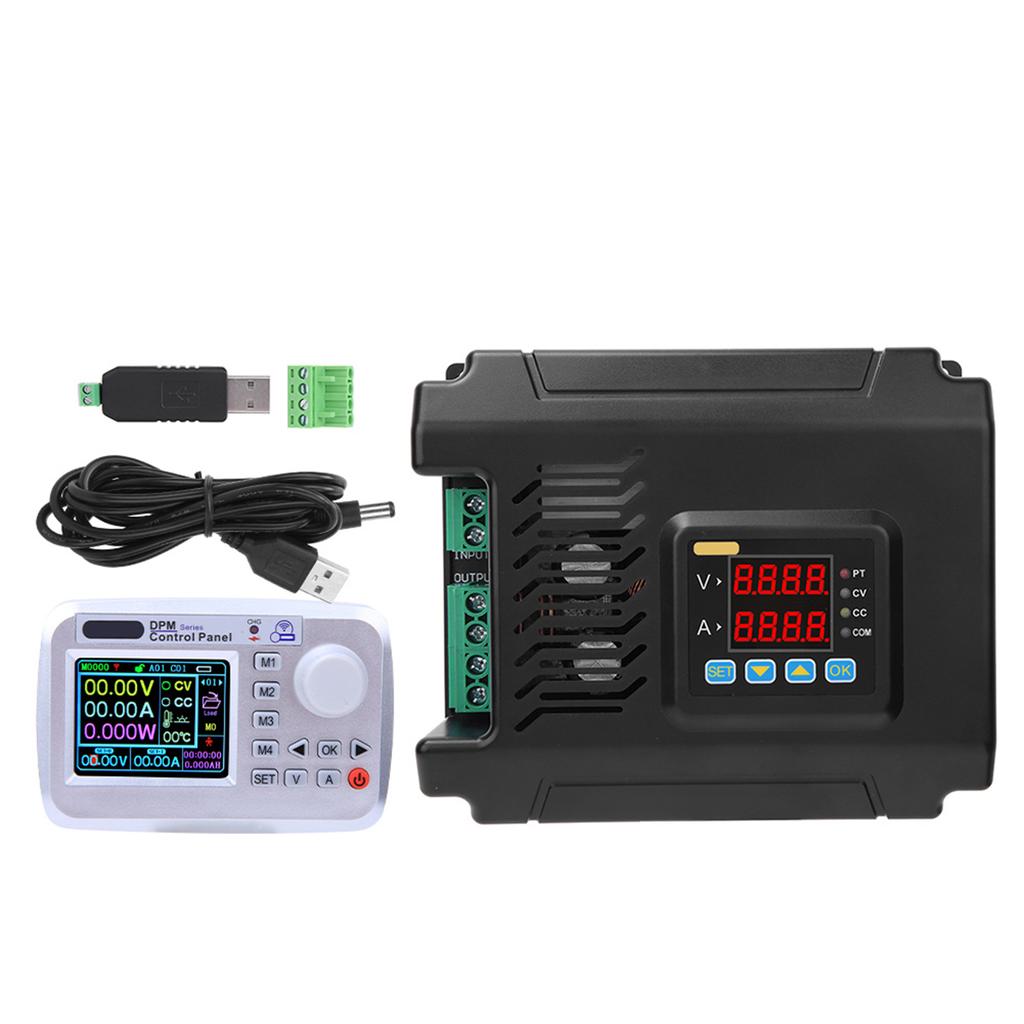

Package List:
1 x Regulated Power Supply
1 x Wireless Control Terminal
1 x Communication Interface Module
1 x USB to 485 Conversion Module
1 x English User Manual
1 x USB Power Cord
