Feature:

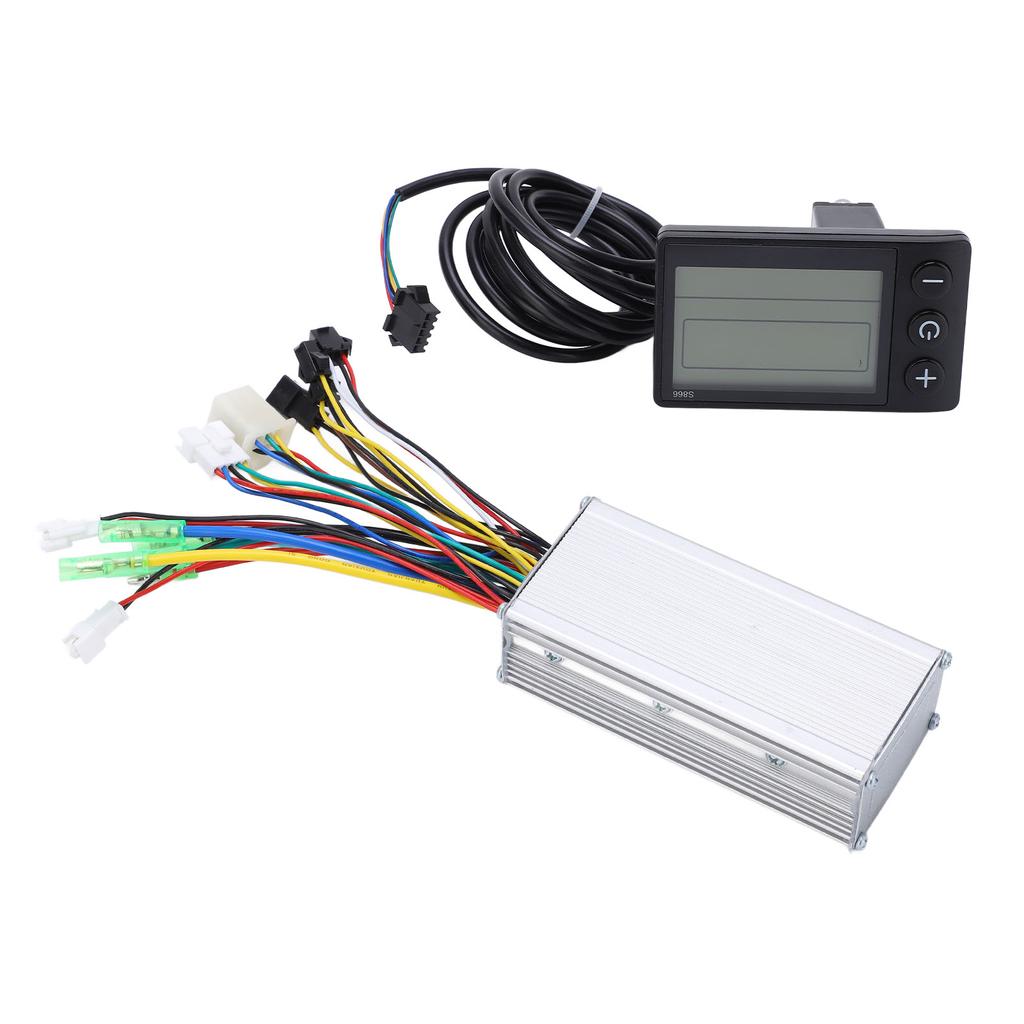

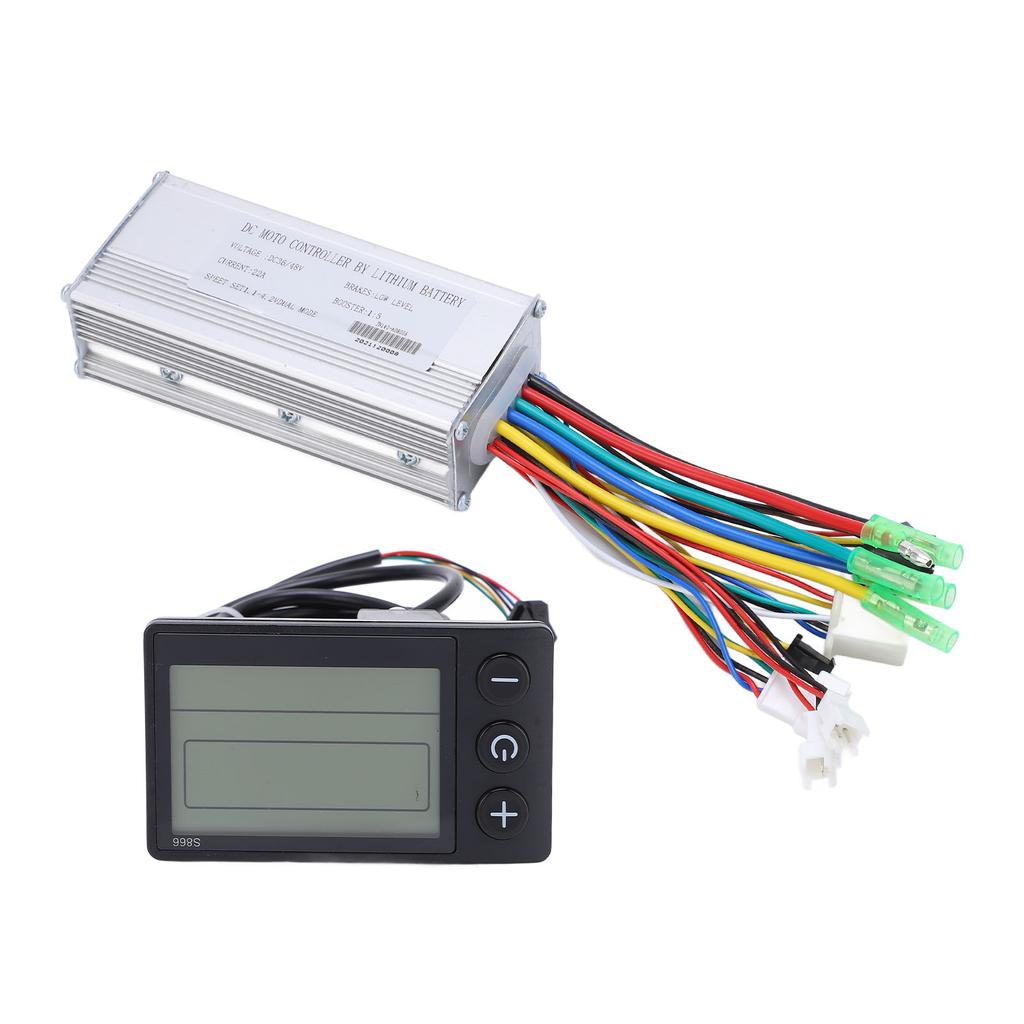

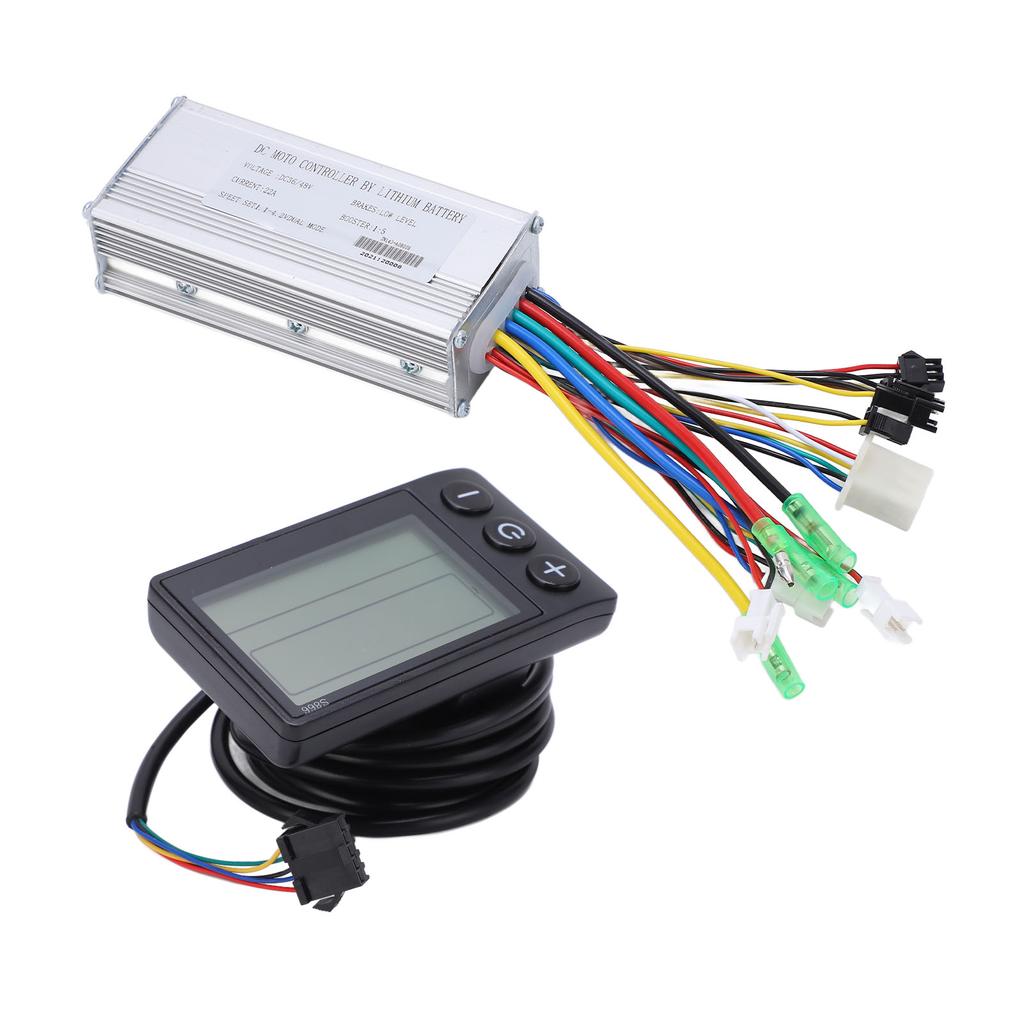

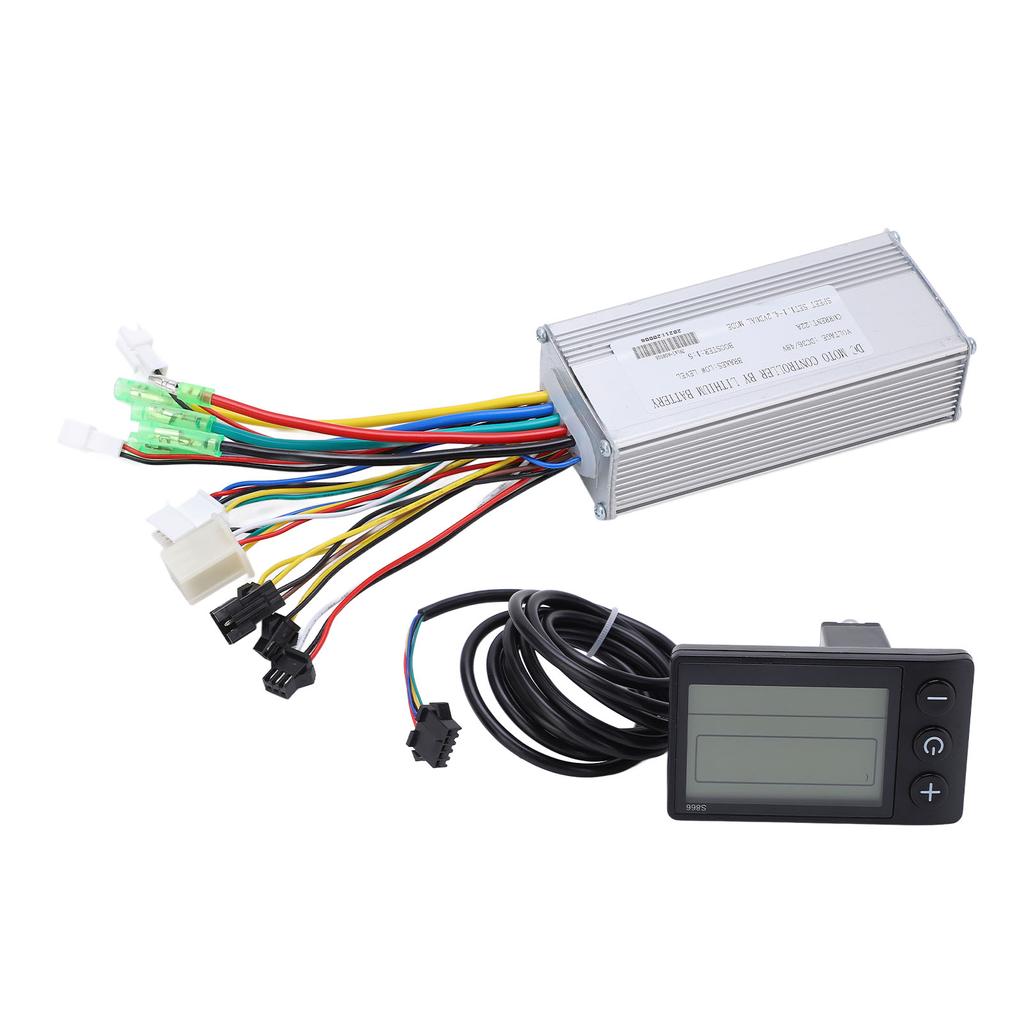

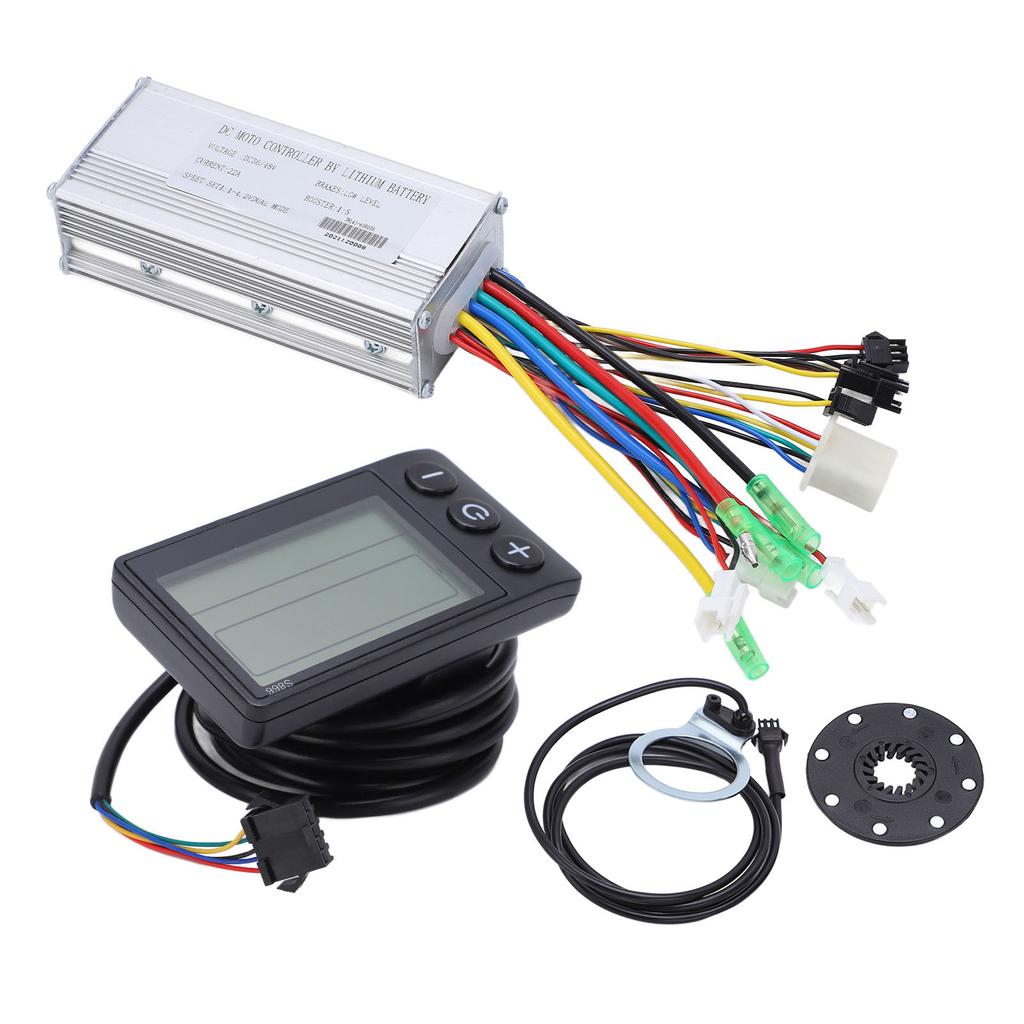

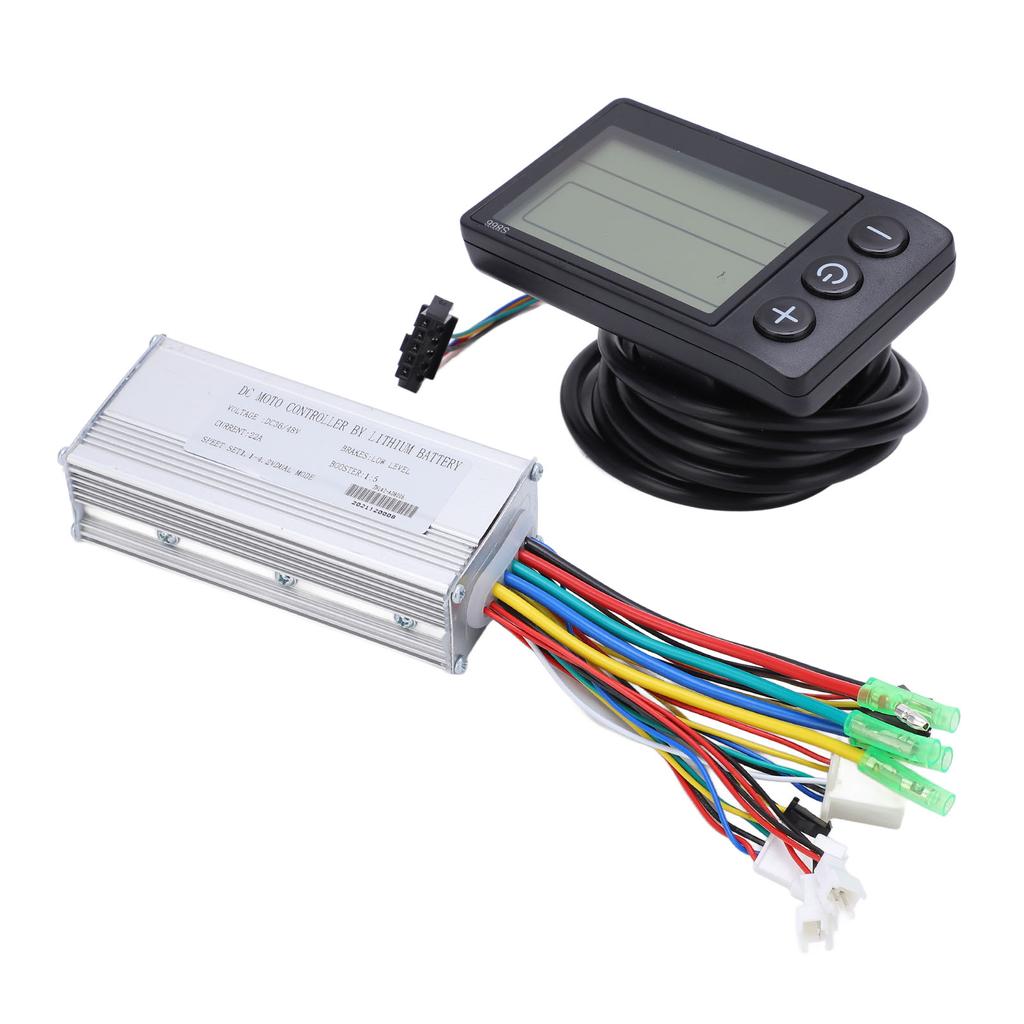

1. Packing List: Electric bike conversion kit include 22A controller, LCD S866 instrument, 130X thumb throttle, 8C speed assist sensor.
2. Controller Housing: Made of high quality metal with groove design, it can protect the internal circuit due to good heat dissipation, thus avoiding thermal overload.
3. Scope of Application: Suitable for 500W motor, DIY electric bicycle, electric vehicle, electric scooter, folding bike, etc. Easy to maintain, electric bicycle greatly improves riding fun, for cyclists who like challenge.
4. Durable Material: Using ABS material, it is light, strong and durable, with good toughness and waterproof performance, providing better protection for the internal circuit.
5. LCD Backlight Display: LCD S866 display meter has a variety of functions, which can clearly display the status and data. When riding bicycle, it will display many useful data on your bicycle, such as battery display, speed display, battery indicator, fault indicator, total mileage, single mileage, current speed, average speed, maximum speed, gear display, etc.
Specification:
Item Type: Electric Bicycle Controller S800 Instrument Kit
Color: As Pictures Shown
Material: Aluminum Alloy + ABS Plastic
Weight: Approx.584g20.6oz
Controller Box Size: Approx. 111x53x33mm4.4x2.1x1.3in, Meter Size: Approx. 80x48mm3.2x1.9in
Controller Maximum Current: 22A
Controller Speed Setting: 14.2V
Controller Brake Input: Low Level
Booster: 1:5
Applicable Motor Power: 500W

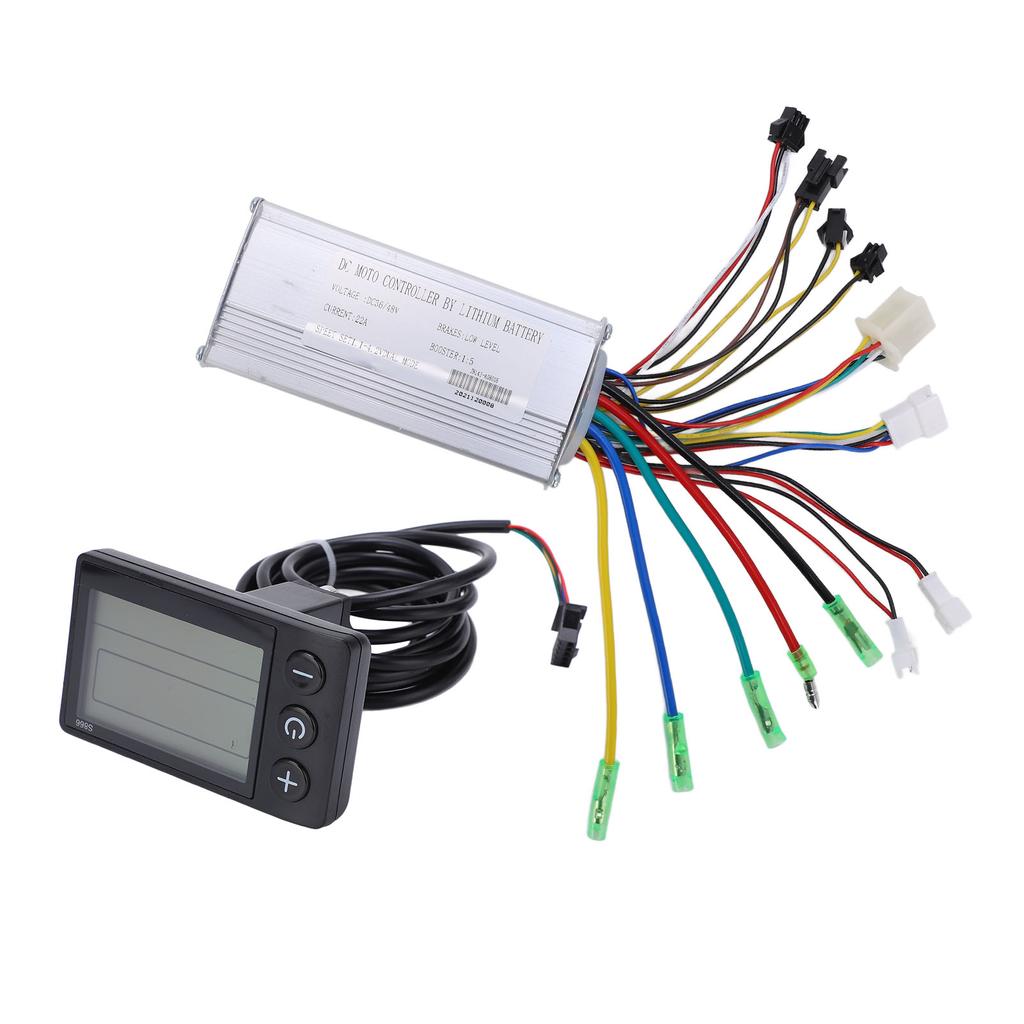

Controller Wire Color Definition:
1. Yellow, Green, Blue Single Big Head Line: Motor Phase Line
2. Redwhiteblackbluegreenyellow Double Row Sixwire Port: Motor Hall Wire
3. Red and Black Single Big Head Line: Power Line
4. Red, Blue, Black, Green and Yellow Singlerow Fivewire Port: Instrument Line (5pin)
5. Black and Yellow Lines (two): Power off Brake Handle Line
6. Red and Black White Lines: Throttle Dial Line (3pin)
7. Brown, Black and Yellow Wire: Power Sensor Wire (3pin)
8. Black and Red Lines (two): Headlight Lines
LCD S866 Meter Working Voltage: DC 24V, 36V, 48V, 60V Compatible (meter Selection Setting).
LCD S866 Meter Meter Function Description:
1. Display Function: Speed Display, Battery Indicator, Fault Indicator, Total Mileage, Single Mileage.
3. Communication Protocol: UART
Display All the Contents of the Screen (full Display for 1S After Booting)
3.1 Display of Battery Power and Remaining Power of BMS.
3.3 Speed display Area
AVG: Average Speed, Max: Maximum Speed, Speed: Current Speed: Unit Mph Kmh.
The Speed Signal is Taken from the Hall Signal in the Motor and Sent to the Meter by the Controller. (the Time of a Single Hall Cycle, Unit: 1ms) the Instrument Will Calculate the Real Speed According to the Wheel Diameter and Signal Data (the Number of Magnets Required by the Motor Hall).
3.4 Vehicle Power Gear Adjustment, 09 Digital Display and Gear Bar Display..
Package List:
1 x Controller
1 x Instrument 1 x Instrument Manual1 x Thumb Throttle 1 x Speed Assist Sensor1 x Controller Wiring Manual
Note:
Note that the size of the motor is consistent with the controller kitPacking List: Electric bike conversion kit include 22A controller, LCD S866 instrument, 130X thumb throttle, 8C speed assist sensor.
