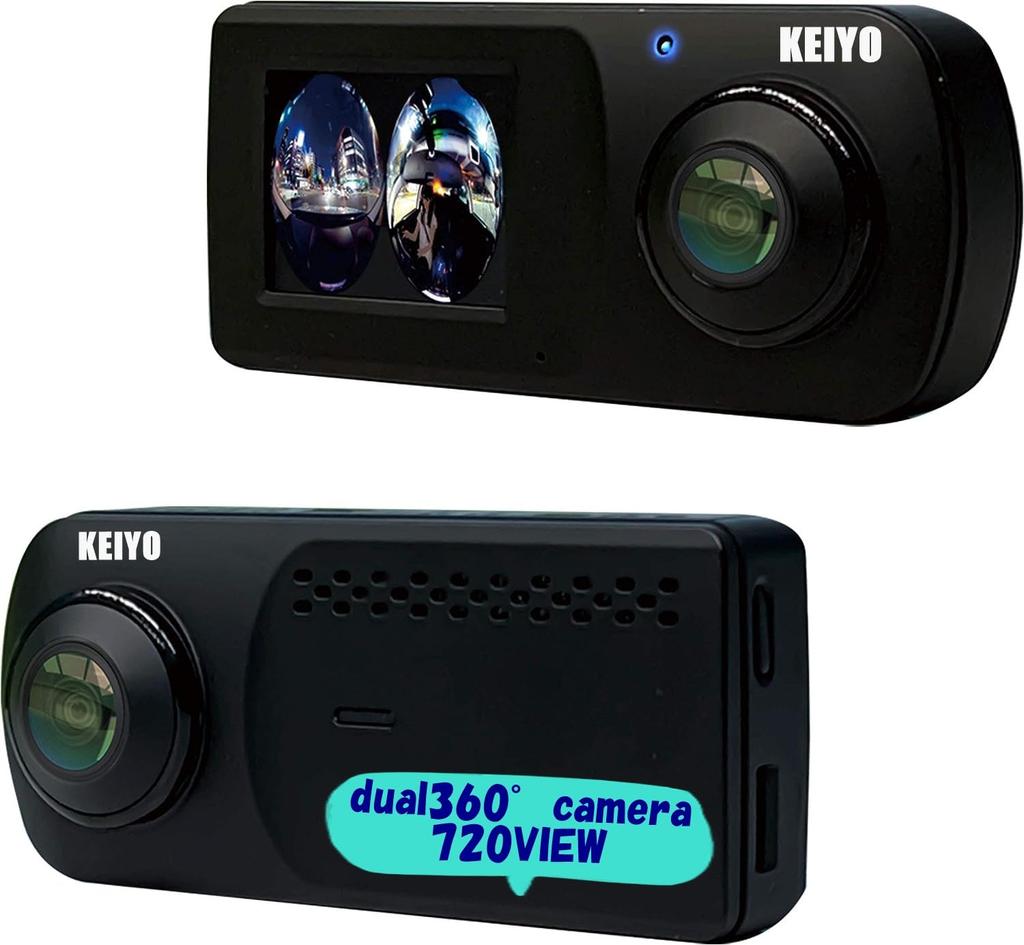

KEIYO Drive Recorder with Two Front and Rear Cameras for a Minimizing Blind Spots from Inside the WDR Support for Nighttime GPS for Map and Fully









Beskrivelse
--------------------------------------------------- 【Voltage Compatibility】 Our products are selected to support international voltage ranges (e.g. 100–240V). However, please make sure your local voltage is compatible before use, as incorrect voltage may still cause malfunction.
【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without appropriate voltage or equipment. --------------------------------------------------- This product is the KEIYO AN-R090 (JAN: 454570800345), a reliable Japanese manufacturer that promises friendly customer service. [Product Specifications] Sensor: CMOS image sensor, approximately 6 million pixels; Recording angle: 360° horizontal x 360° vertical (combining images from two front and rear cameras). Recording size: 3840 x 1920 (spherical: 1920 x 1920 x 2) Frame rate: 24 fps Recording time (per file): Continuous recording: 60 seconds Manual recording: 60 seconds/120 seconds Impact detection recording: 60 seconds/120 seconds Screen size: 2.0 inches Touch panel Audio recording: Yes (ON/OFF switchable) GPS antenna: Yes (built-in) G-sensor (impact detection): Yes (OFF or adjustable from 1 to 3 levels) Memory card: microSDHC card MLC Class 10 or higher (8 to 32 GB), microSDXC card MLC Class 10 or higher (64 to 128 GB) Power supply voltage: DC 12/24 V (current consumption: 12 V: approx. 280 mA, 24 V: approx. 160 mA) Weight: Approx. 142g (excluding bracket) Recording method: TS (H.264) Operating temperature range: -10°C to +65°C Included items: Main unit, cigarette lighter power cable (3.5m), microSDHC card (32GB), instruction manual with 1-year warranty (Made in Japan) [360° horizontally x 360° vertically reduces blind spots] *Optional: A dedicated rear camera is also available separately. This product is KEIYO AN-R090 JAN:454570800345, and is made by a reliable Japanese manufacturer, so we promise to provide friendly customer service. 720° spherical dash cam. Equipped with dual 360° cameras, achieving 360° front and rear 720. The 720View system minimizes blind spots. Equipped with an easy-to-operate touch panel LCD. You can check the recorded data you want to check on the spot in two different display methods. Built-in GPS/G-sensor. Three display options available with the dedicated viewer. Equipped with dual 360° cameras and a 720View system minimizes blind spots. Equipped with an easy-to-operate touch panel LCD. You can check the recorded data you want to check on the spot in two different display methods. Built-in GPS/G-sensor. Three display options available with the dedicated viewer. Brand: KEIYO Model: AN-R090 Features: Equipped with a super capacitor Video capture resolution: 720p Included components: Cigarette lighter power cable (3.5m), instruction manual (warranty card), microSDHC card (32GB) Mounting type: Adhesive Control method: Touch Screen size: 2 inches Display type: LCD Actual angle of view: 3 60 degrees [360° horizontally x 360° vertically reduces blind spots] ◆The main unit is equipped with two ultra-wide-angle cameras with horizontal and vertical resolution of 220°, one on the front and one on the back, and by combining the images from these cameras, it is possible to capture every corner of the image, even in areas that would be cut off with conventional 360-degree cameras, making it a 720-degree omnidirectional recording dashcam. [Product Specifications] Sensor: CMOS image sensor, approximately 6 million pixels; Recording angle: 360° horizontal x 360° vertical (combining images from two cameras, front and rear); Recording size: 3840 x 1920 (spherical: <1920 x 1920> x 2); Frame rate: 24 fps; Recording time (per file): Continuous recording: 60 seconds; Manual recording: 60 seconds/120 seconds; Impact detection recording: 60 seconds/120 seconds; Screen size: 2.0 inches; Touch panel; Audio recording: Yes (switchable ON/OFF); GPS antenna: Yes (built-in); G-sensor (impact detection): Yes (OFF, or adjustable in 1-3 steps); Memory card: microSDHC card MLC Class 10 or higher (8-32GB); microSDXC card MLC Class 10 or higher (64-128GB); Power supply voltage: DC 12/24V (current consumption: 12V: approximately 280m) A, 24V: approx. 160mA) Weight approx. 142g (bracket not included) Recording method TS (H.264) Operating temperature range -10℃~+65℃ Included items Main unit, cigarette lighter power cable (3.5m), microSDHC card (32GB), instruction manual with 1-year warranty (Made in Japan) *Optional: A dedicated rear camera is also available separately.
