Features:
Brand new high quality
Made of high-quality materials for durability
The SP series connectors are for applications where the connectors are strong enough to withstand dust, dirt and sand, and are resistant to submersion for up to 30 minutes underwater to a maximum depth of 1.5m.

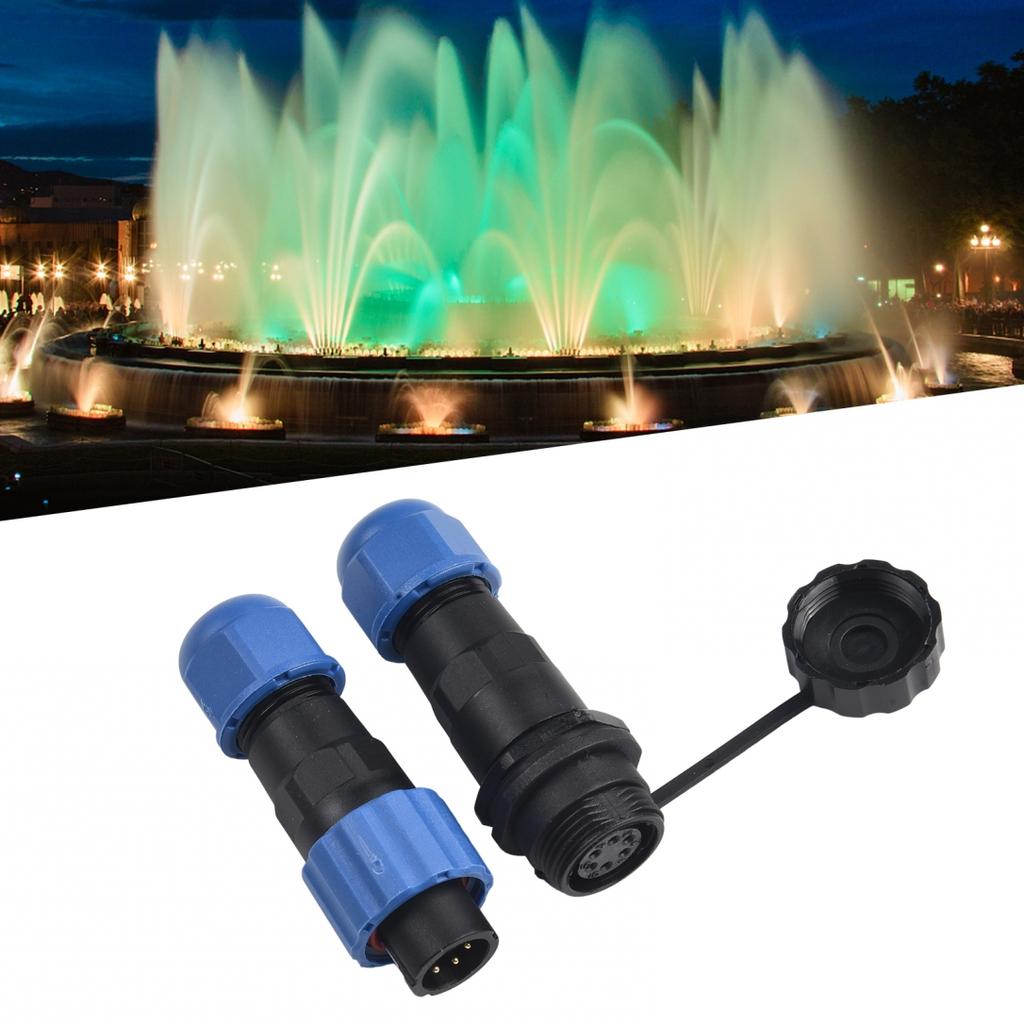

Available in a variety of sizes and pin counts, the series can be used in many projects such as outdoor lighting, fountain pumps, data cables, power transmission cables, and more.
Product parameters:

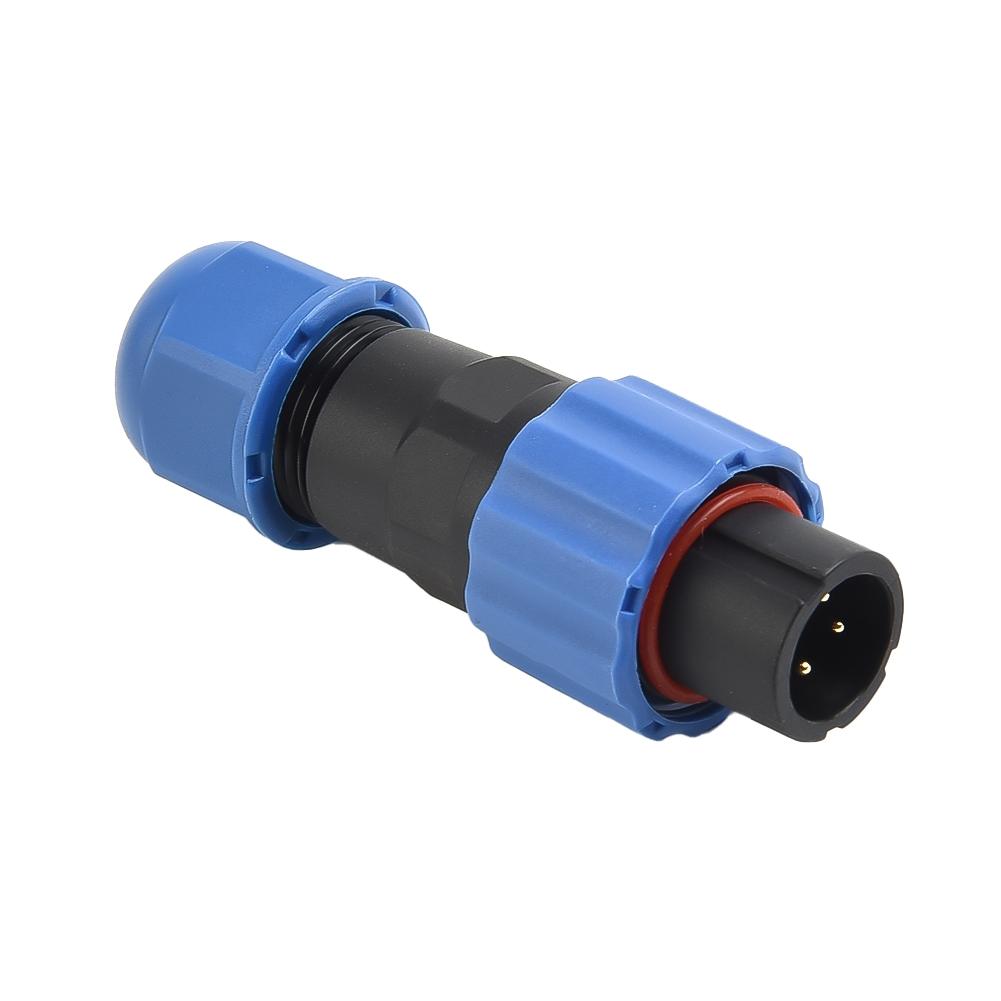

Item Type: Aviation Cable Connector Socket

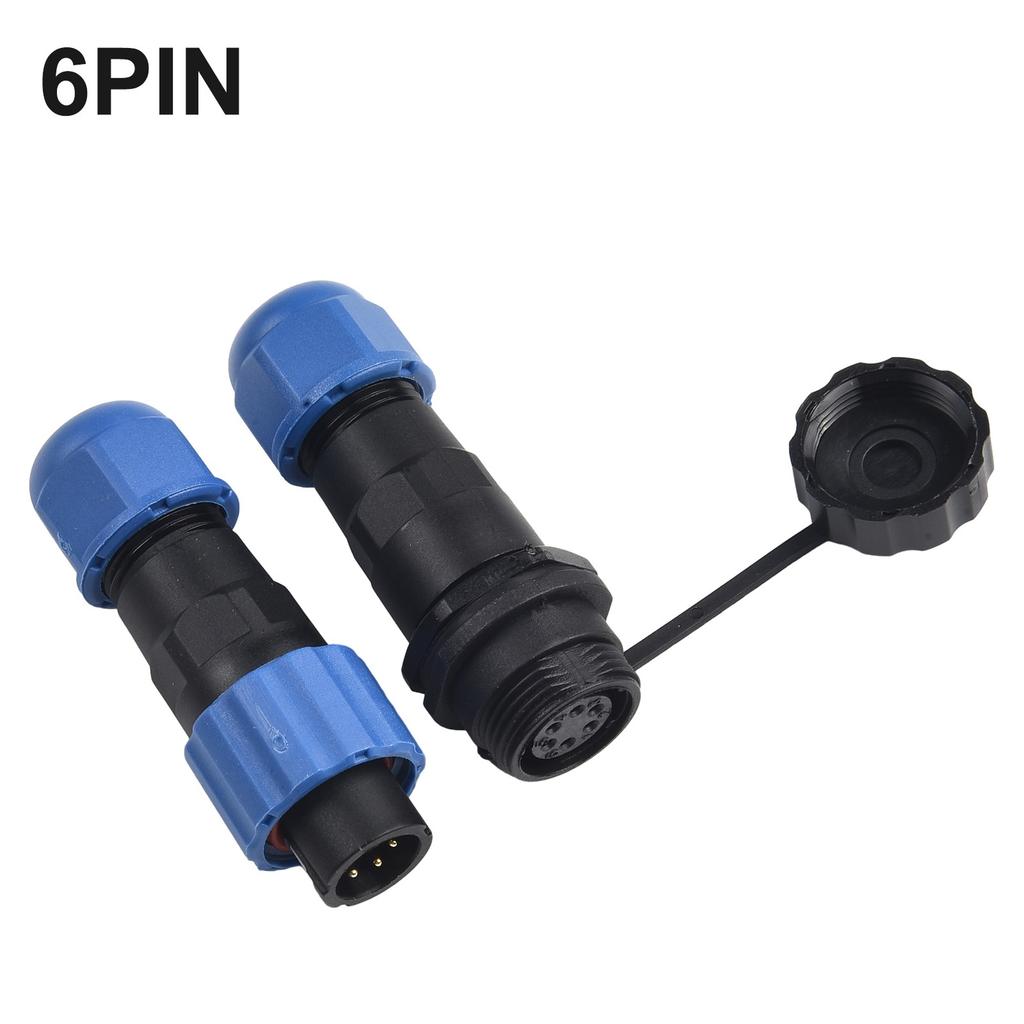

Specifications: 2pin, 3pin, 4pin, 5pin, 6pin, 7pin (optional)
Material: PA66, PP S, Silicone, Copper
Shell material: PA66, PA6
Insulator: thermoplastic PP S (high temperature resistance 220℃)
Contact Material: Copper (Gold Plated)
Connection : Soldering (if using solder paste, it must be cleaned with alcohol)
mode: screw connection
Head Size: Approx. 13 mm / 0.5 inches
Thread specification: M13 1mm
Insulation resistance: 2000MΩ
Copper pin diameter: 2.8mm, 1, 8mm, 1mm, 1mm, 1mm, 1mm, 1mm (1-7Pin)
Copper needle applicable wire gauge (mm²/AWG): ≤4/12, ≤1.5/14, ≤0.75/18, ≤0.75/18, ≤0.75/18, ≤0.75/18, ≤0.75/18 (1-7 pins )
Rated current: 25A, 10A, 5A, 5A, 5A, 5A, 5A (1-7 pins)
Working voltage: 380V, 380V, 250V, 250V, 250V, 250V, 250V (1-7 pins)
Withstand voltage: 1500V
Applicable cable for shell: Φ4-6mm²
Mating times: more than 500 times
Operating temperature range: -25°C to 85°C
Sealing: IP68

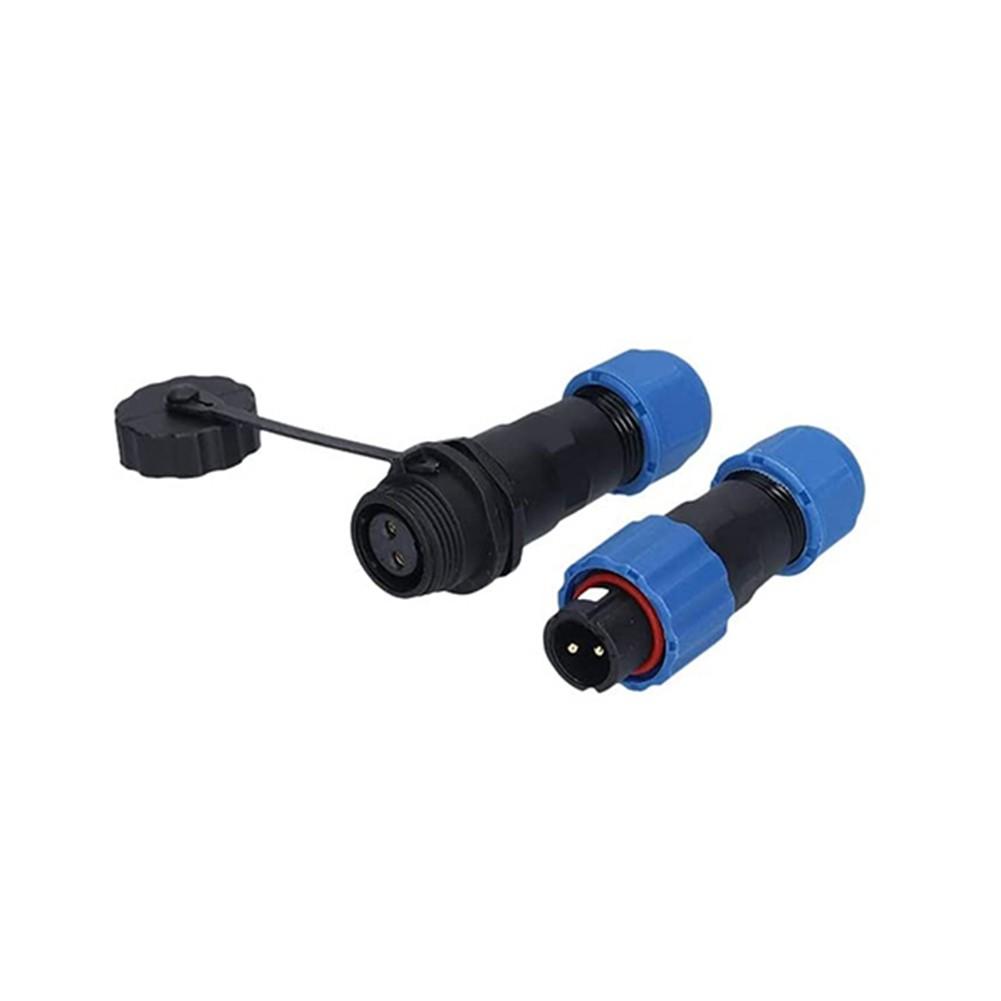

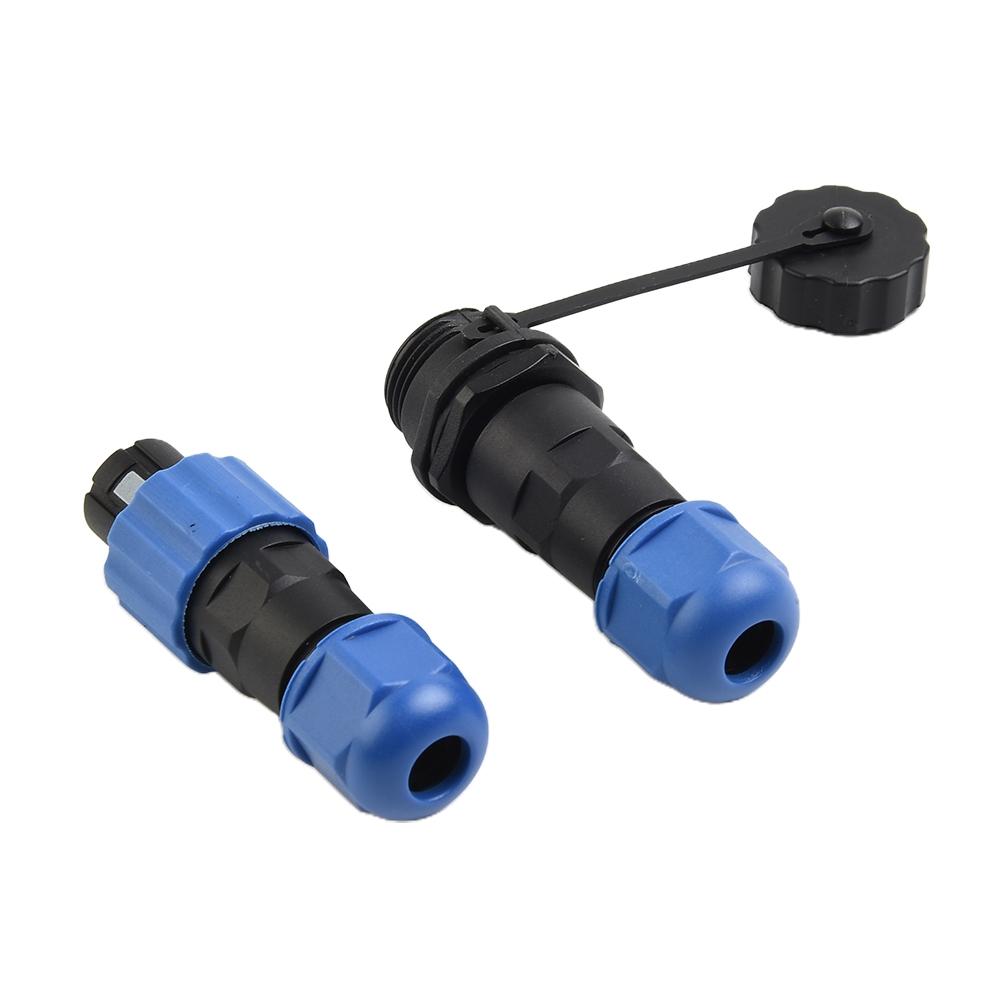

Package Included:

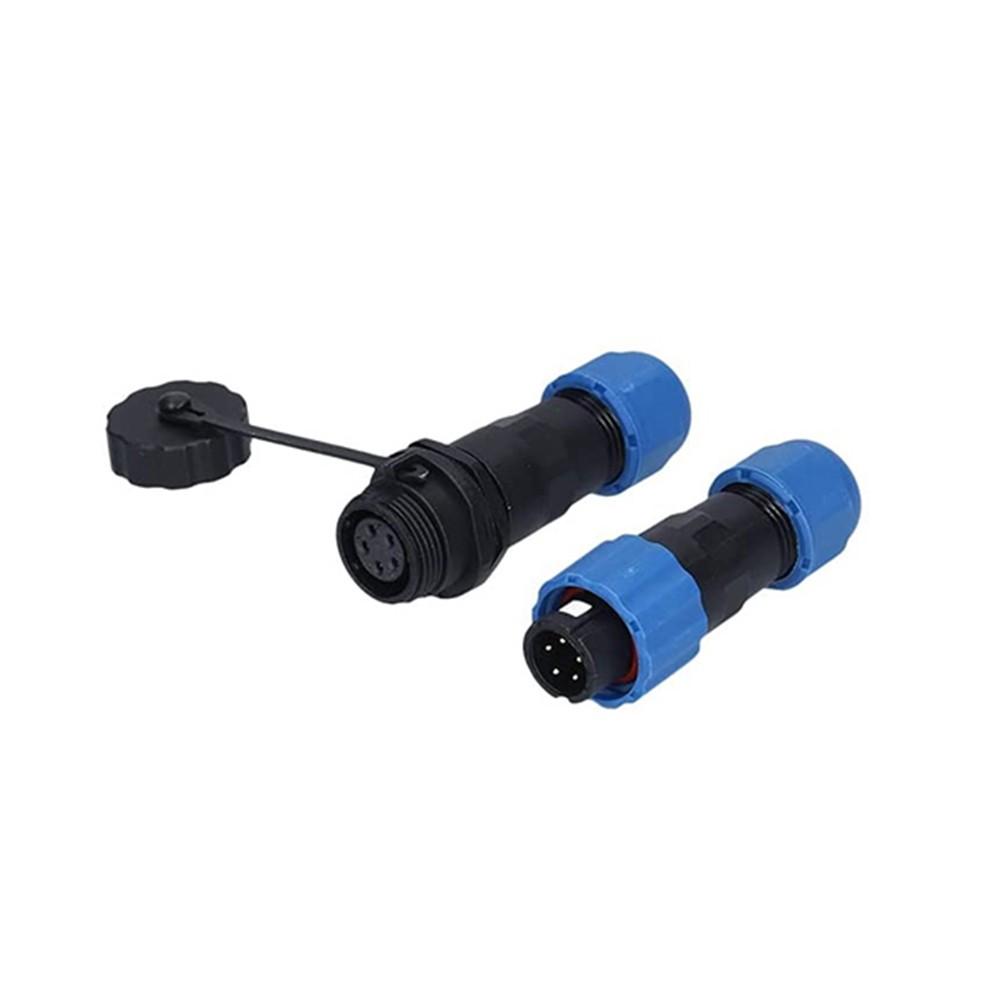

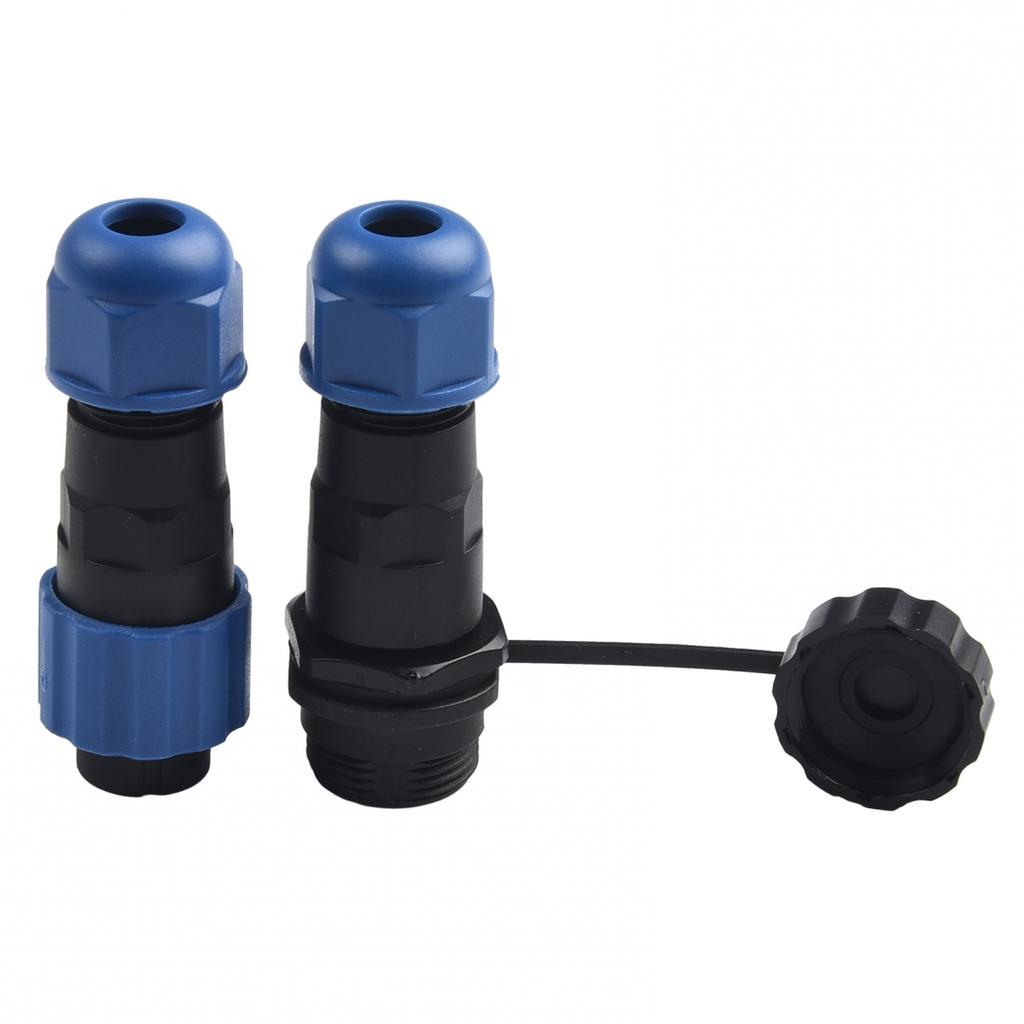

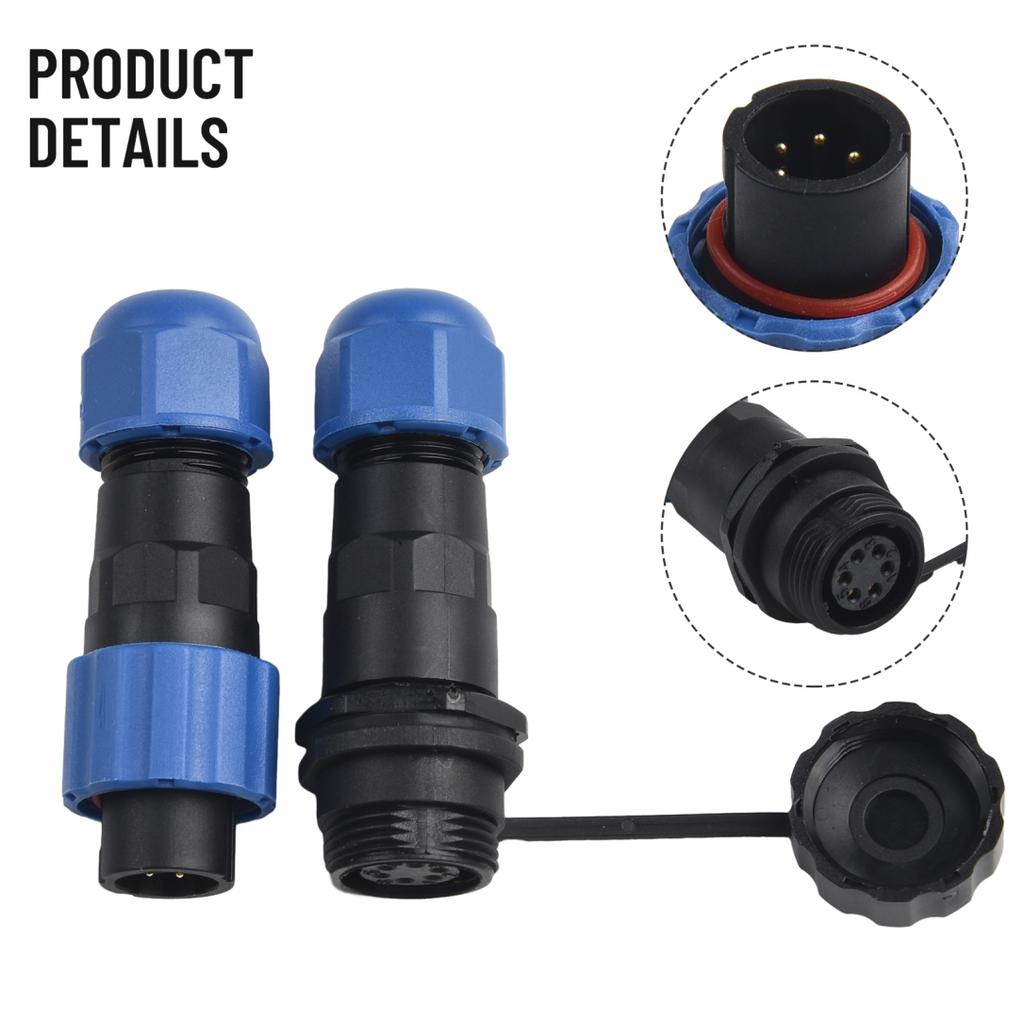

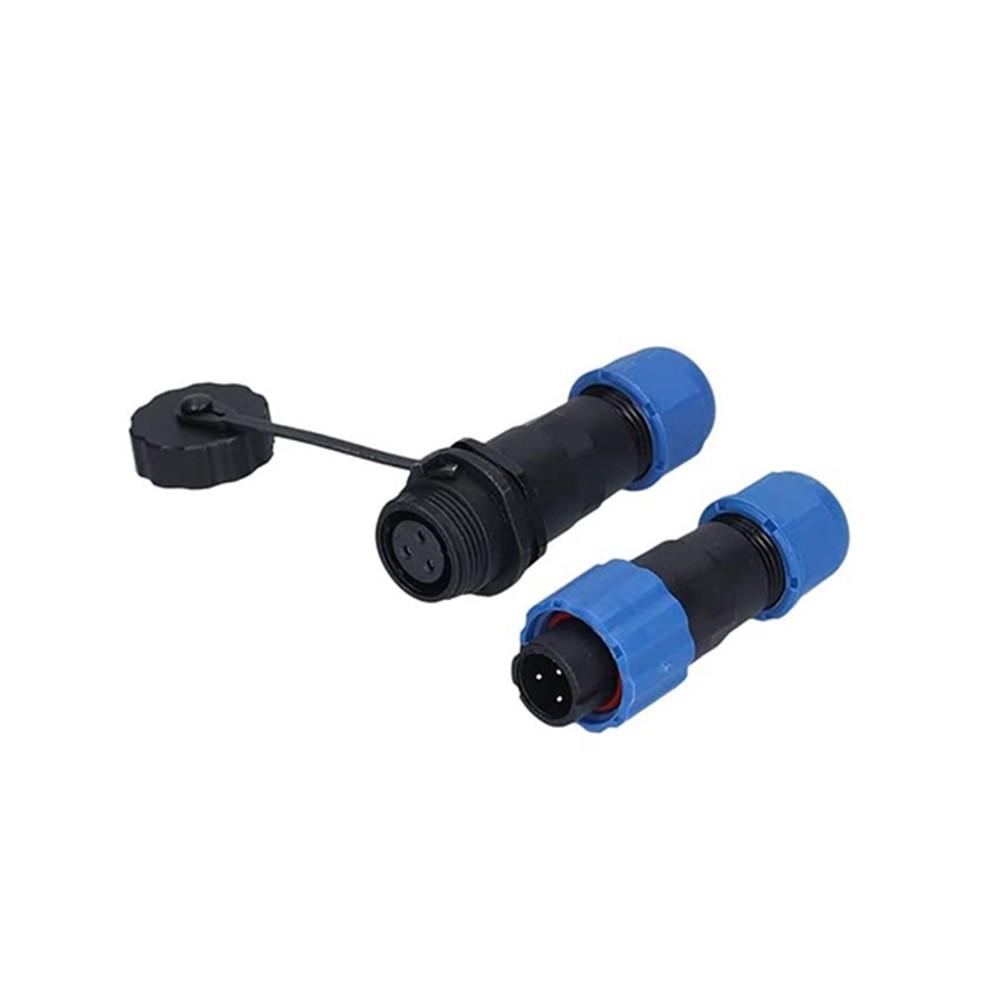

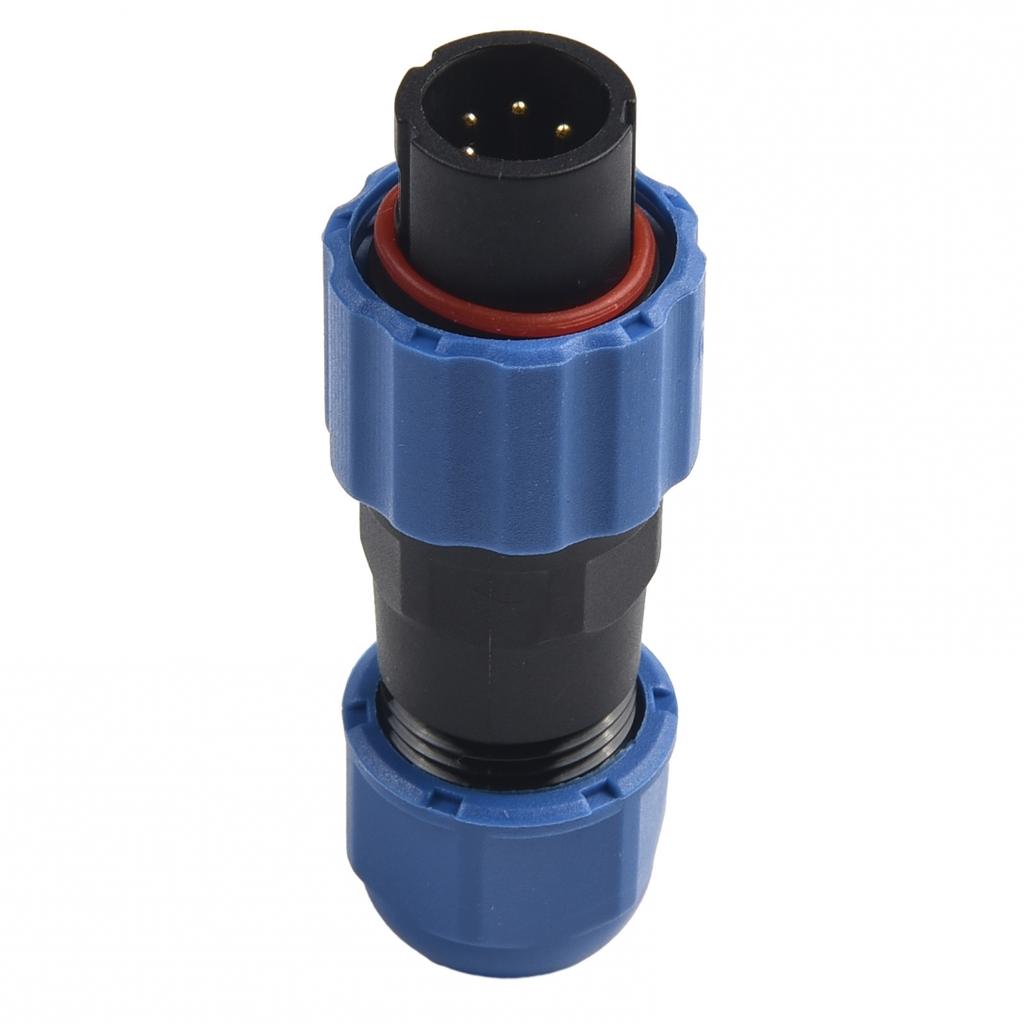

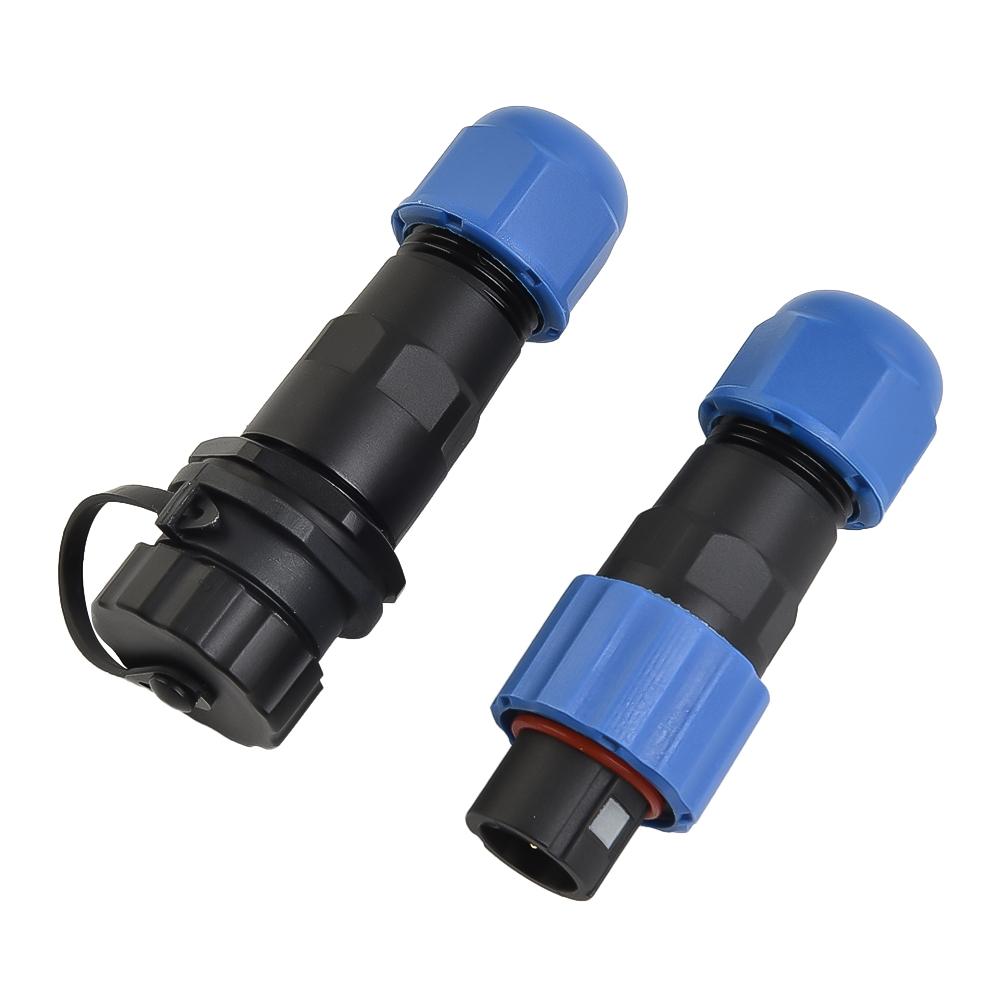

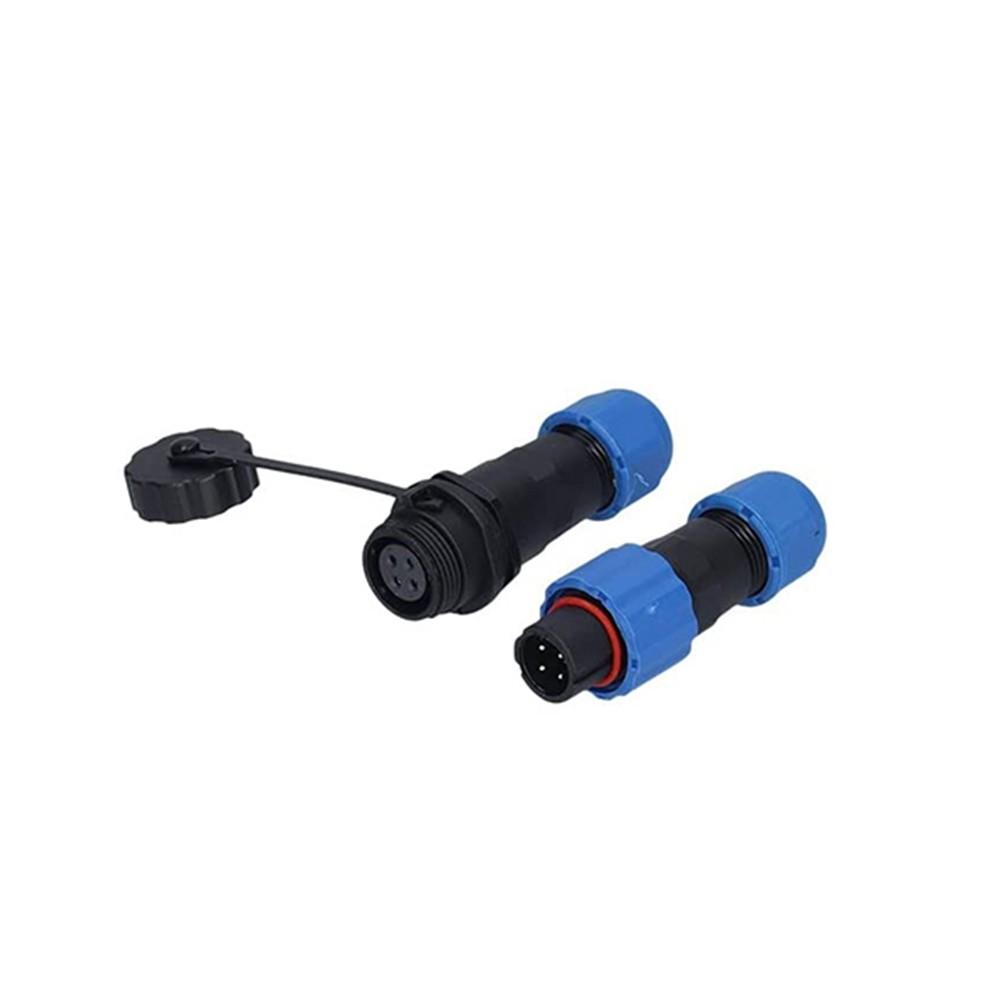

1 * Aviation cable connector socket (male)

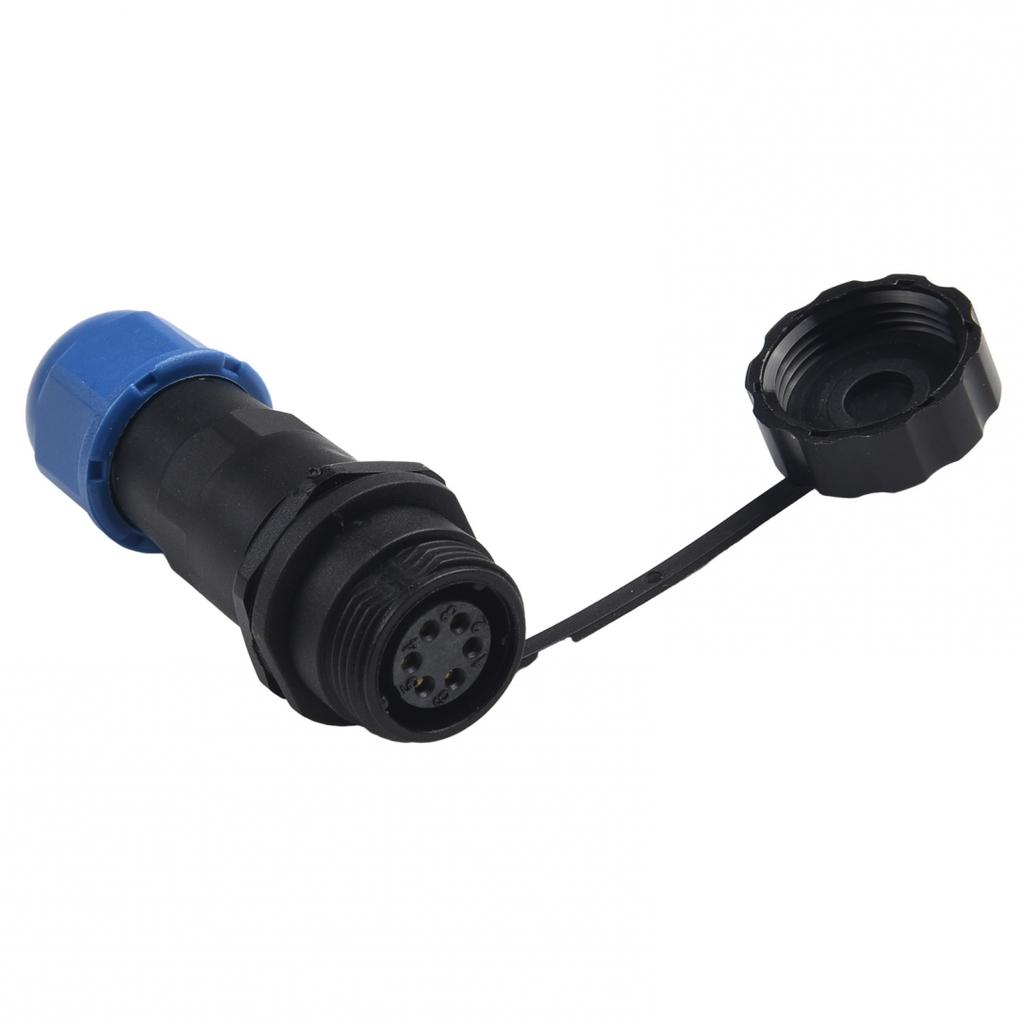

1 * Aviation cable connector socket (female)
Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
