Just plug it in! This easy-to-use, single-function, high-resolution DAC is a breeze!
Despite its simple, user-friendly design, it employs high-quality components to deliver sound quality on par with higher-end models.
Simple is best!
Utilizing the USB/SPDIF conversion function of the Savitech BRAVO "SA9023," which supports high-resolution audio, digital-to-analog conversion is performed using the ESS ES9023P.
With simple operation, you can output high-resolution USB data as an analog audio signal via familiar RCA cables with just a simple connection.
Product Features
■High-Resolution Support with the BRAVO "SA9023"
Equipped with the Savitech BRAVO "SA9023," which supports high-resolution audio.

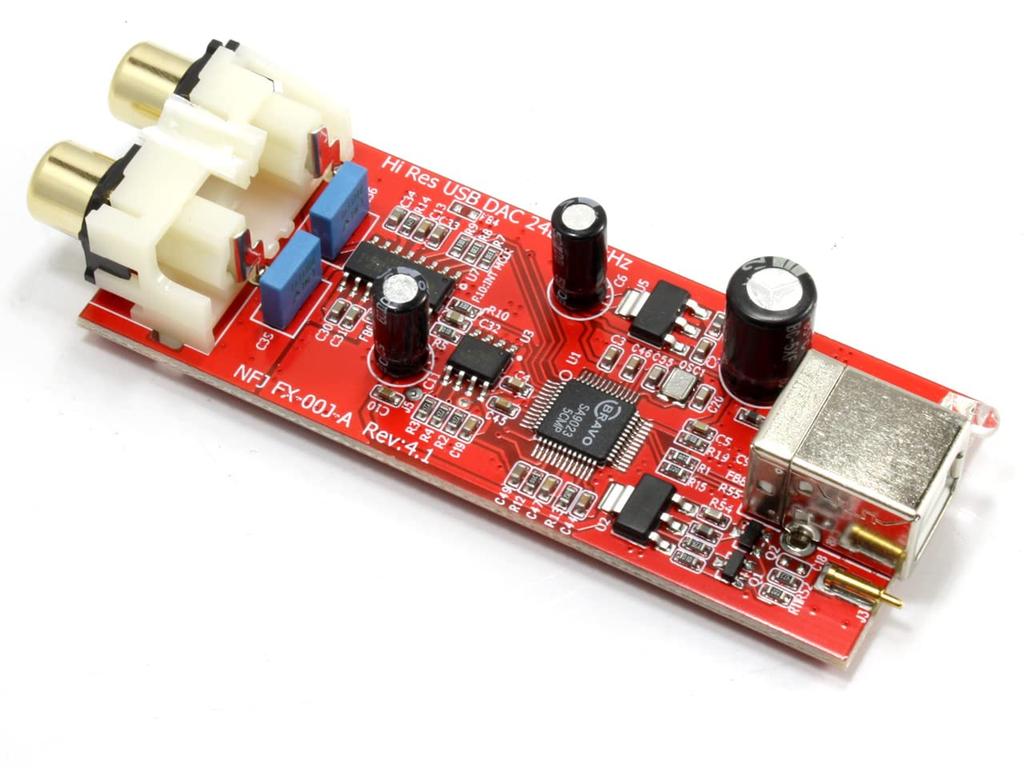

The board circuitry has been redesigned, and the USB receiver IC has been upgraded from the "VT1728A" to the new-generation BRAVO "SA9023."
By switching to a new, proven IC design and redesigning the circuitry, basic performance has been improved.
■Because it's bus-powered, the power supply circuit has been meticulously strengthened and optimized.
・Audio capacitors are used to smooth the USB power supply!
A sufficient amount of audio capacitors, designed to be structurally resistant to vibration, are used.
Considering the user environment of this easy-to-handle unit, audio capacitors with high vibration resistance are used.

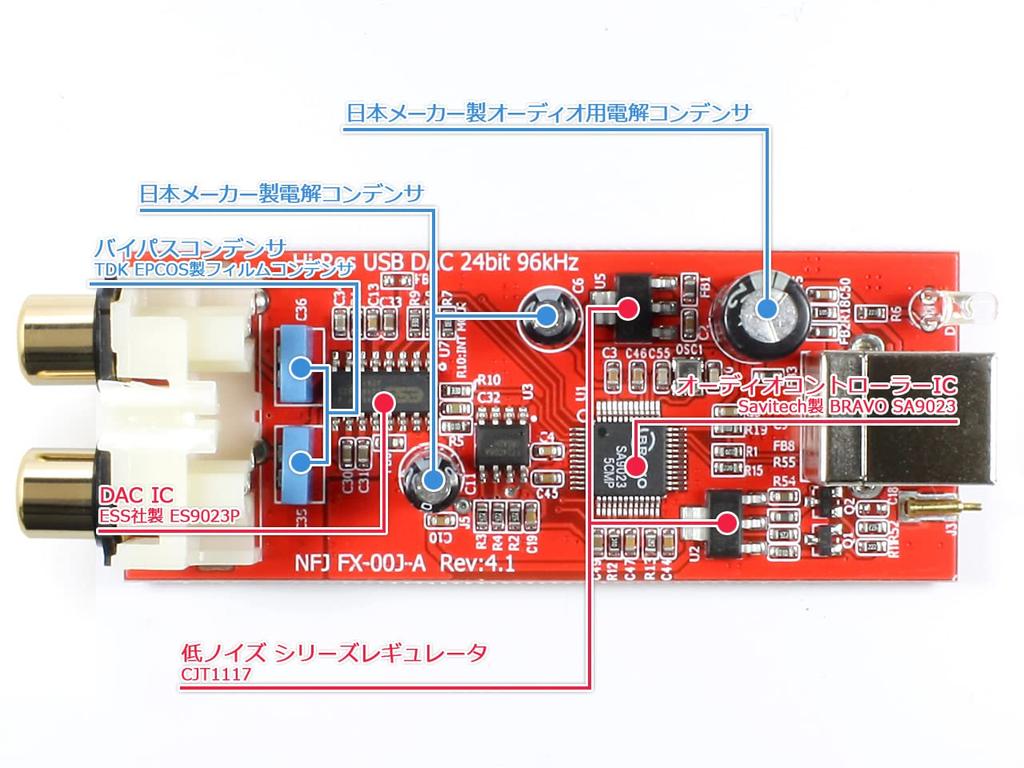

・AMS1117 is used to generate 3.3V.
Furthermore, the low-noise series regulator AMS1117 is used to generate 3.3V, maintaining a stable ground and reducing jitter.
■ESS ES9023P DAC IC is used.
The DAC IC used is the ESS Technology ES9023P (DNR: 112dB), the same DAC IC used in the DAC-H6J.
By using TDK EPCOS film capacitors at the output, the beautiful high frequencies that are a hallmark of the ES9023P are further refined.
■High-quality gold-plated RCA terminals
Consider the various usage situations, and the output terminals are high-quality gold-plated RCA terminals to resist oxidation and dirt.
[Key IC Specifications]
■Audio Controller IC (USB-DDC): Savitech BRAVO SA9023
Supported Formats: Up to 24-bit/96kHz
■DAC IC: ESS Technology ES9023P
Dynamic Range: 112dB
[Product Specifications]
Brand: FX-AUDIO
Model Number: FX-00J
Color: Black
Warranty Period: 6 months from date of purchase

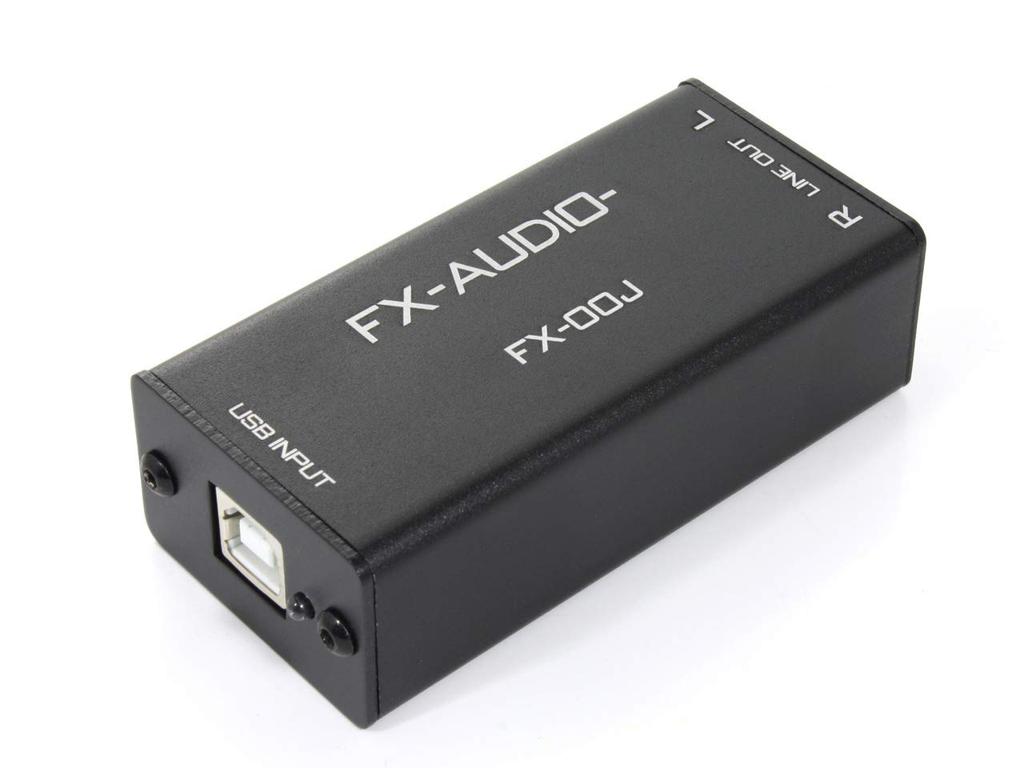

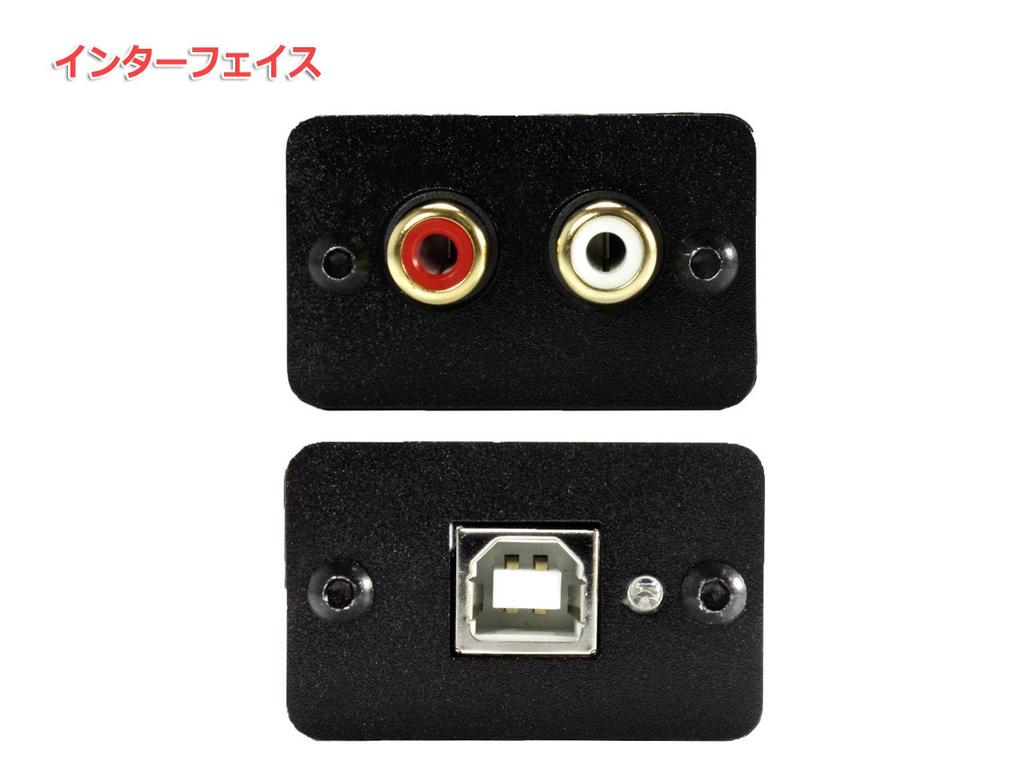

Digital Input: USB Type B connector, USB 1.1/2.0 compatible, USB Audio Class 1.0

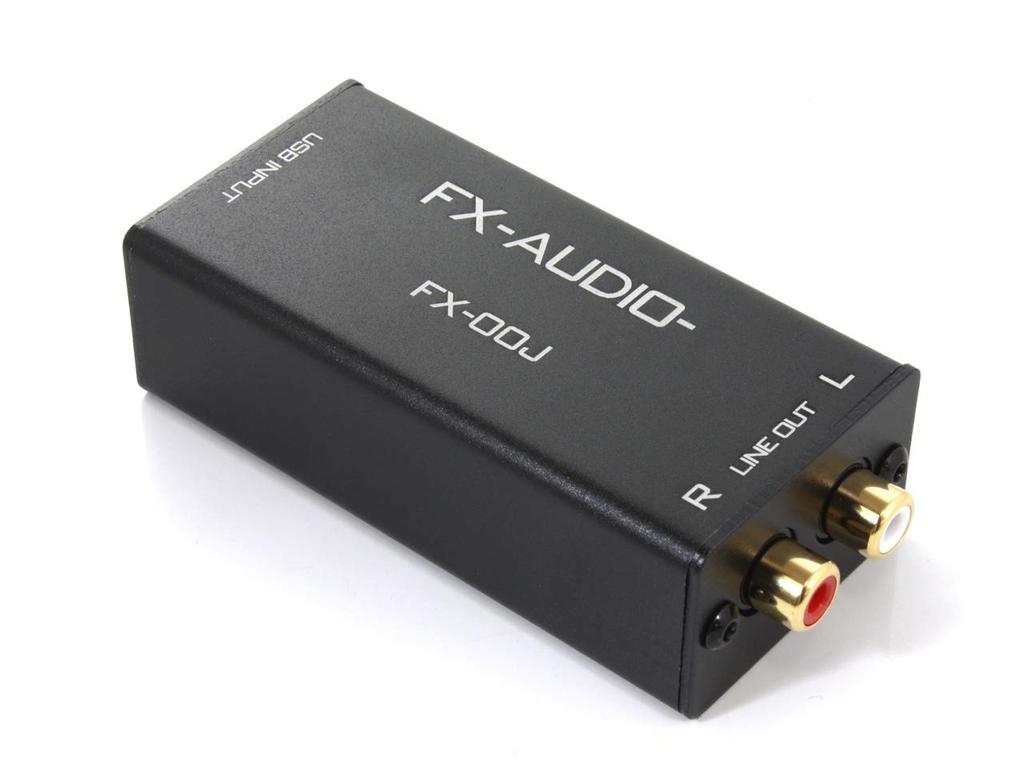

Analog Output: Stereo RCA connectors (gold-plated)
Supported Formats: PCM up to 24-bit/96kHz
DAC IC: ESS Technology ES9023P
Audio Controller IC: Savitech BRAVO SA9023 (USB-DDC)
Supported OS: Windows 11/10/8 (8.1) & 7/Vista/XP/2000/Mac OS X 9.1 or later
*Operation is not guaranteed on devices other than PCs, such as smartphones or game consoles.
Incompatible devices may cause noise, no sound, or intermittent sound.

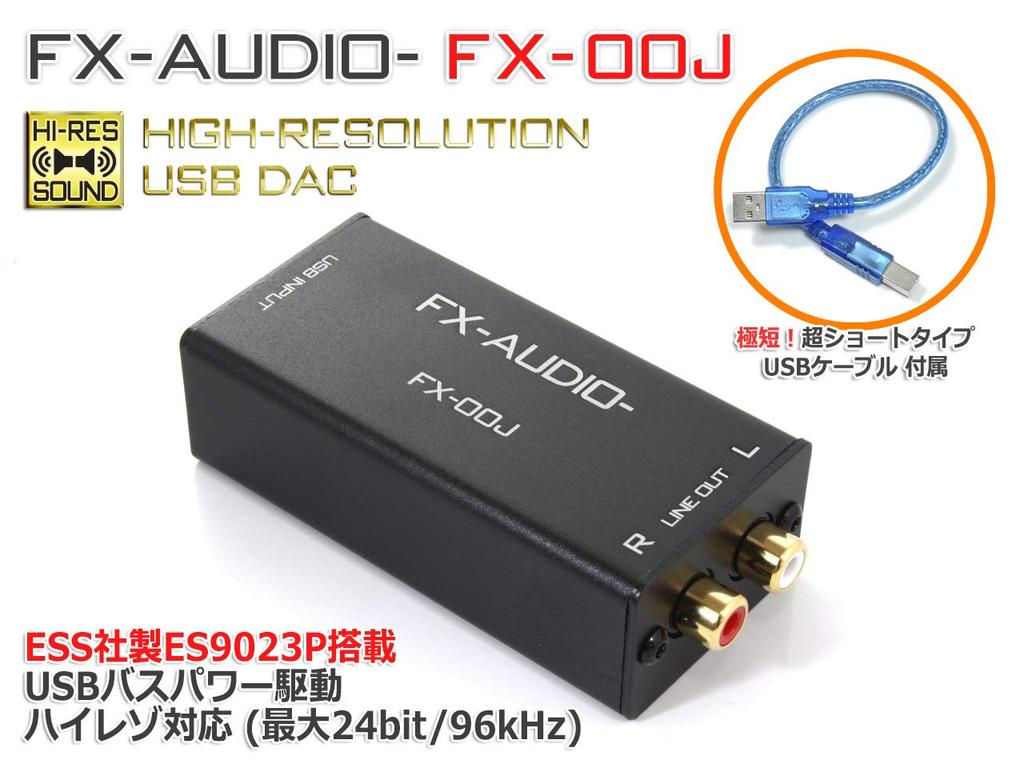

Accessories: USB cable (approx. 20cm), instruction manual
Dimensions: 25mm H x 40mm W x 81mm D (excluding protrusions)
Weight: 95g
*Specifications and design may be changed without notice for product improvement reasons.
Uses Savitech BRAVO "SA9023" for USB/SPDIF conversion, supporting high-resolution audio.
Bus-powered operation ensures a reinforced and optimized power supply circuit.
Uses ESS ES9023P DAC IC.
High-quality gold-plated RCA terminals.
